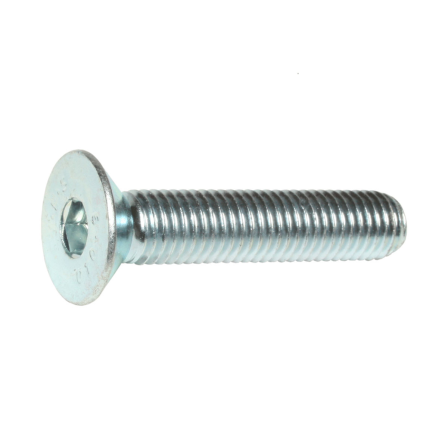

Socket Countersunk Screw M10 x 40mm Zinc Plated Grade 10.9 (Pack of 100)
Countersunk socket screws have a flat head and a hexagonal internal drive for tightening.
When located in countersunk holes they create a flush finish against the workpiece.
They can be used with hexagon nuts or screwed into tapped holes.
They conform to DIN7991.
Manufactured from high grade 10.9 steel.
Fully threaded.
Bright Zinc Plate (BZP) finish offers resistance to corrosion.
COMMODITY CODEÂ Â Â Â Â Â Â Â 7318156890
Technical Specification (as per drawing)
Diameter (d): M10Â
Length (l): 40mm
Head diameter (dk): 20.69mm
Head depth (k): 6.2mm
Allen key size (s): 6mm
Thread pitch: 1.5mm
Angle of head: 90°
