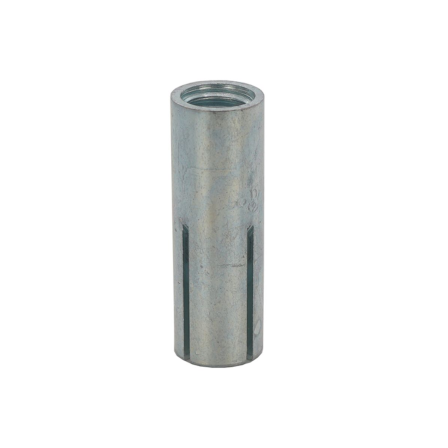

Drop-In Anchors M8 x 30mm Zinc Plated ETA Approved Box of 100

Drop-In Anchors M8 x 30mm Zinc Plated ETA Approved
A drop-in anchor (also known as a wedge anchor) is a type of steel fixing for use in concrete for pre-positioned installation.  They are ideal for permanent and temporary fixings as the fasteners can be removed and replaced.
The metric internal thread allows for the use of standard screws or threaded rods.

Advantages
•    Fast and secure installation
•    Fasteners can be removed and replaced
•    Reaction to Fire Class A1
•    Fire resistant loading
•    Internal thread is suitable for bolts or threaded rods
•    ETA Option 7 approval

Installation
•    Drill the correct size hole in the concrete to the corresponding depth.
•    Clean hole to remove any debris and dust.
•    Tap the anchor into the concrete using a hammer.
•    Insert the setting punch inside the anchor and hammer in to drive the internal pin to set the fixing (the setting tool must sit on the edge of the anchor to ensure correct expansion).
•    Tighten your fixing to the correct torque.

Technical Information
•    Material: Carbon steel
•    Finish: Zinc plated
•    Internal thread: M8
•    Anchor length: 30mm
•    Drill hole depth: 30mm
•    Internal threaded length: 13mm
•    Drill hole diameter: 10mm
•    For fixing into: Concrete
•    Pack type: Box
•    Pack quantity: 100
•    Commodity code: 7318190090

Please download attached pdf file for further technical information.
