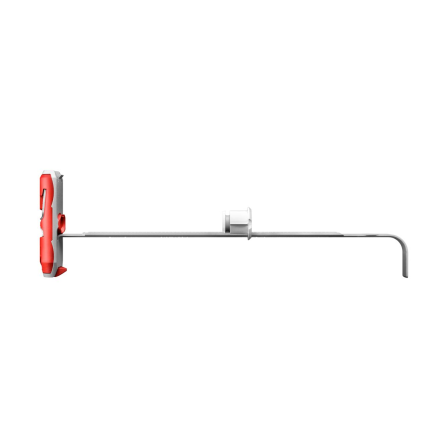

Fischer DuoTec 10 Nylon Toggle Cavity Fixing 537260 Box of 20

For further technical data, please download attached pdf.

Description

The nylon toggle Fischer DuoTec for high tensile and transverse loads through 2 components.

Easy installation with small drill hole diameters of 10 mm and short toggle element, even in narrow and insulated cavities.

Easy pre-installation; the plug does not fall into the drill hole, even without a screw.

No cutting, and thus no weakening of the gypsum plasterboard.

The toggle element automatically folds behind the panel and gives it its strength.

As a result of the flexible stainless steel screw seat, the gravity toggle can be used with wood and chipboard screws or metric hooks and threaded rods with lock nuts.

If it hits something in the drill hole in solid building materials, it functions like an Expansion plug.

Technical Specification

Drill diameter 10 mm

Min. panel thickness           9.5 mm

Max. panel thickness          55 mm

Min. cavity depth      40 mm

Screw diameter        4.5 - 5.0 mm

Screw length ≥ dp + tfix +20 mm

Min. drill hole depth ls + 10 mm

Min. screw length    tfix + 60 mm

Anchor length           50 mm

Contents        20 x DuoTec 10

Packaging     Folding box

Amount          20 pcs.

GTIN (EAN-Code)   4048962254099
