Resin anchors are high-performance heavy-duty fixings which are ideal for fixing short spacing and close to edges due to their non-expansion aspect.

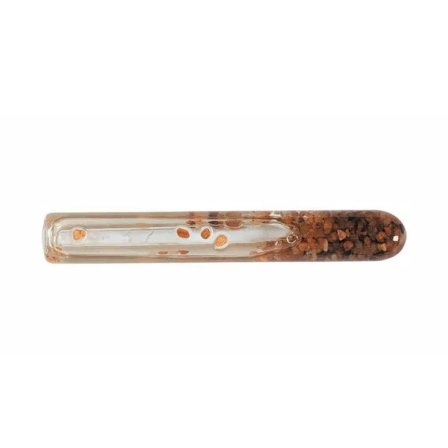

The J-Fix spin in glass capsule resin anchor is used with threaded studs to provide a stress-free anchorage in concrete.
The quartz aggregate contained in the resin capsule enables the anchor to achieve exceptional loads.
Technical Information
To be used with M12 threaded studs.
Drill diameter for concrete: 14mm
Capsule diameter: 13mm
Capsule length: 95mm
Minimum hole depth: 110mm
For further technical details, please download the attached pdf file.
How To Install
Drill the correct size hole diameter and depth.
Clean thoroughly with a blow-out pump and brushes before installation.
Insert the glass capsule into the hole.
Using a power drill, drive the resin stud into the glass capsule until the contents are mixed and the bottom of the hole has been reached.
Allow the curing time for the anchor before tightening the nuts.
Features
ETA Option 7 Approved
Good Resistance to Vibrating Loads
Can Be Used In Wet And Corrosive
Environments
Expansion Free
Epoxy Acrylate
High Performance
SKU | JCAPSM12 |
---|---|
Manufacturer | JCP |
GTIN | 5014196001098 |
Box Quantity | 10 |
Diameter | M12 |
