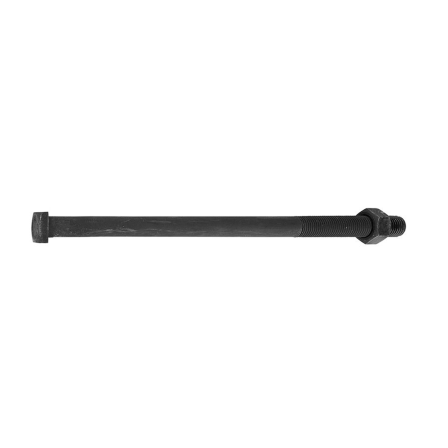

M16 x 300mm DIN7419 8.8 Sq. Sq. Hex Foundation Bolt and Nut Pack of 1

SKU: HDB8816300
In stock
- +
In stock
Add to compare
Download PDF
Need Help: Call 01270 252 326

  • For setting into concrete and to be used in conjunction with a waxed cardboard cone and square plate washer.



    Technical Details

    Grade 8.8 high tensile steel

    126mm thread

    Head diameter 24mm square

    Square diameter 16mm square

    Head thickness 10mm

    Square thickness 8mm

    Recommended cone size 9" (229mm)

    Manufactured to DIN7419



    COMMODITY CODE         7318159589

Associated Products

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Waxed Cardboard Cone
Waxed Cardboard Cone 9" (229mm) Long (Pack of 1)
In stock
£0.72 Incl. VAT £0.60 Excl. VAT As low as £0.30 Incl. VAT £0.25 Excl. VAT
SQUARE HOLE WASHER PLATE
100 x 100 x 10mm Thick Washer Plates c/w 18mm Square Hole (Pack of 1)
In stock
£2.28 Incl. VAT £1.90 Excl. VAT As low as £1.80 Incl. VAT £1.50 Excl. VAT
SKU HDB8816300
Manufacturer Unifix
GTIN 5014196189192
Material Self Colour
Box Quantity 1
Diameter M16
