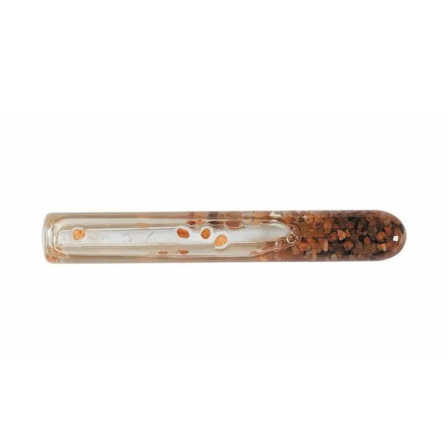

M20 J-Fix Spin-In Resin Capsule Pack of 10

Resin anchors are high-performance heavy-duty fixings which are ideal for fixing short spacing and close to edges due to their non-expansion aspect.

The J-Fix spin in glass capsule resin anchor is used with threaded studs to provide a stress-free anchorage in concrete.

The quartz aggregate contained in the resin capsule enables the anchor to achieve exceptional loads.

Technical Information

To be used with M20 threaded studs.

Drill diameter for concrete: 22mm

Capsule diameter: 17mm

Capsule length: 160mm

Minimum hole depth: 170mm

For further technical details, please download the attached pdf file.

How To Install

Drill the correct size hole diameter and depth.

Clean thoroughly with a blow-out pump and brushes before installation.

Insert the glass capsule into the hole.

Using a power drill, drive the resin stud into the glass capsule until the contents are mixed and the bottom of the hole has been reached.

Allow the curing time for the anchor before tightening the nuts.

Features

ETA Option 7 Approved

Good Resistance to Vibrating Loads

Can Be Used In Wet And Corrosive Environments

Expansion Free

Epoxy Acrylate

High Performance
