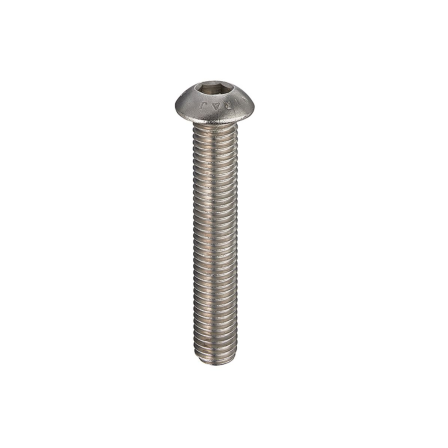

M8 x 40mm A2 Stainless Steel Socket Button Screw (Pack of 10)
SKU: 4168A208040
In stock
-
A2 Stainless Steel Socket button screws have a low profile dome head and a hexagonal internal drive for tightening.
They create a smooth, rounded surface when installed.
They can be used with hexagon nuts or screwed into tapped holes.
Fully threaded.
They conform to ISO 7380-1.
A2 Stainless Steel offers resistance to corrosion.
-
COMMODITY CODE 7318156890
-
Technical Specification (as per drawing)
Diameter (d): M8
Length (l): 40mm (fully threaded)
Head diameter (dk): 14mm
Head depth (k): 4.4mm
Allen key size (s): 5mm
Thread pitch: 1.25mm
