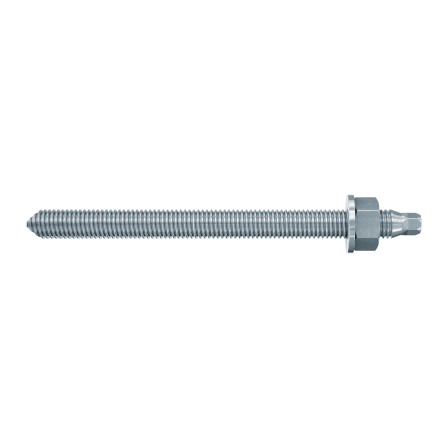

Fischer M16 x 190 RG M Resin Stud Zinc Plated 50259 Pack of 10

Please download the attached pdf file for further technical information.

ETA approved resin studs complete with one nut and washer.

For use with Fischer resin injection systems or Fischer glass resin capsules.

Approved for anchorage in cracked and non-cracked concrete, solid brick masonry, perforated masonry and aerated concrete.

Grade 5.8 steel, bright zinc plated.

Functionality

Due to its oblique edge, the anchor rod RG M is particularly suitable for use in conjunction with Fischer resin capsules.

The Fischer anchor rod RG M is set using a hammer drill and the accompanying setting tool in rotating and hitting motions.

During setting, the oblique edge of the RG M destroys the resin capsule and mixes and activates the mortar.

Also for use with Fischer injection mortar cartridges. Here, the anchor rod is manually inserted into the drill hole with a light rotating movement until it reaches the base of the hole.

Technical Specification

Drill diameter in concrete: 18mm

Thread diameter: M16

Overall length: 190mm

Max. Fixture Thickness: 90mm

Finish: Zinc Plated
